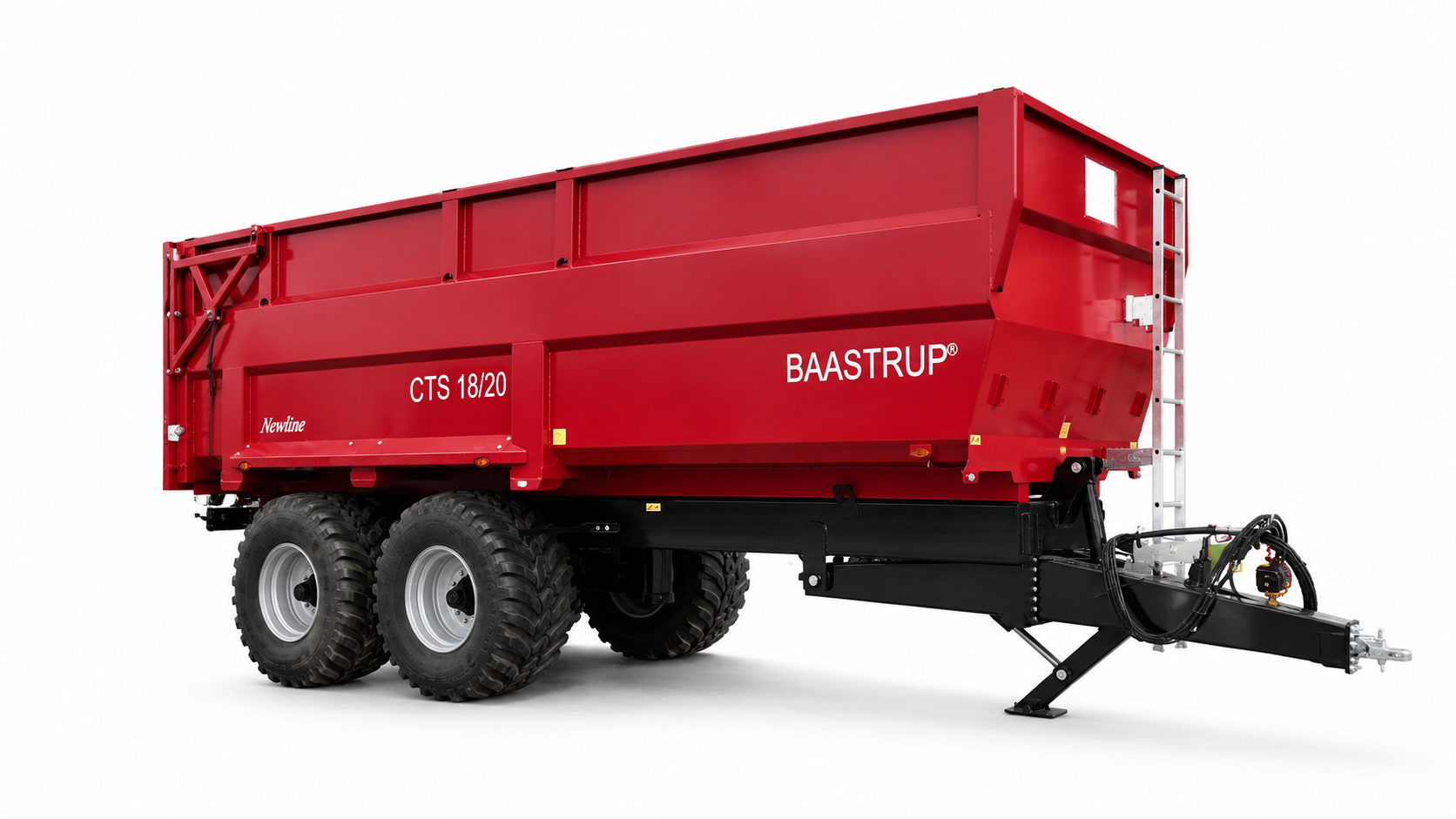

CTS 18/20 Tonne NewLine

CTS-18-20-Ton-Newline

CTS 18/20 Tonne NewLine

Container Trailer with French tailboard, conical loading box and the possibility for grass sides

SPECIFICATIONS

CTS 18/20 Tonne NewLine
Load capacity (kg) 18.000 på vej – 20.000 off road
Loading space (lxwxh) m 6,75 x 2,25 x 1,7
Capacity (m³) Ca. 26
Axles/rotating/brakes 2/1/2 (positive steering)
Hydraulic tailboard Standard
Total height standard (m) 3,07
Wheel mounting standard 620/50 R 22,5
Hydraulic support stud Standard
Capacity with grass sides m³ Ca. 38
Extra equipment, such as grass sides, 80 cm including net front board; rolling tarp; extra wheel mounting possible, 26.5” wheel Ask the machine dealer about the price

STANDARD UDSTYR

1. Spring-supported drawbar
2. Fixed tilting bogie
3. Hydraulic, positive steering backmost axle
5. Adjustable pull height
6. Tyre size 620/50 R 22.5
7. LED light
8. Hydraulic brakes

9. Plate thickness floor 4 mm
10. Pane in front board
11. Fertilizer spout in the tailboard
12. Mechanical lock on the tailboard
13. Ladders outside/inside
14. Measurements of the inside of the loading box 1700x6750x2250 mm
15. Total height with standard tyres without grain sides 3070 mm


The trailer is equipped with a hydraulic French tailboard that can tilt 90 cm up over the loading box so that the back end is completely free. Tip angle 48° optimizes unloading.


The tailboard is run by two double-acting cylinders that are connected to two mechanical hooks, as well as two guides at the bottom of the tailboard. The tailboard is locked mechanically and hydraulically.


The trailer can be equipped with an extra set of sides for transporting grass and maize. These are available with a height of 80 cm. Capacity approx. 38 m³.


Spring-supported drawbar


A statutory lighting system & bumper are mounted. Diode lights. A fertilizer spout is mounted in the tailboard. Ready for registration to licence plate.


Rear bogie axle, positive steering, hydraulically lockable. Large brakes can meet future brake requirements.


The loading box is conical and completely smooth on the inside, with a 45-degree transition between the sides and the bottom, which ensures easy unloading. No crossing supports in the loading box.

EXTRA EQUIPMENT

1. Alternative tyres
2. Platform
3. Grass side kit
4. Special colour for a higher price, longer delivery time
5. Total height with standard tyres without grain sides 3870 mm
6. Net front board grass side set
7. Height of the grass sides 800 mm


Spring-supported drawbar as an option.


Wheel alternatives.


The wheel size is up to 26.5″. Wheel base 185 cm. Axle load up to 10,000 kg/axle.
