CTS 24 Tonne NewLine

CTS-24-ton-new-line

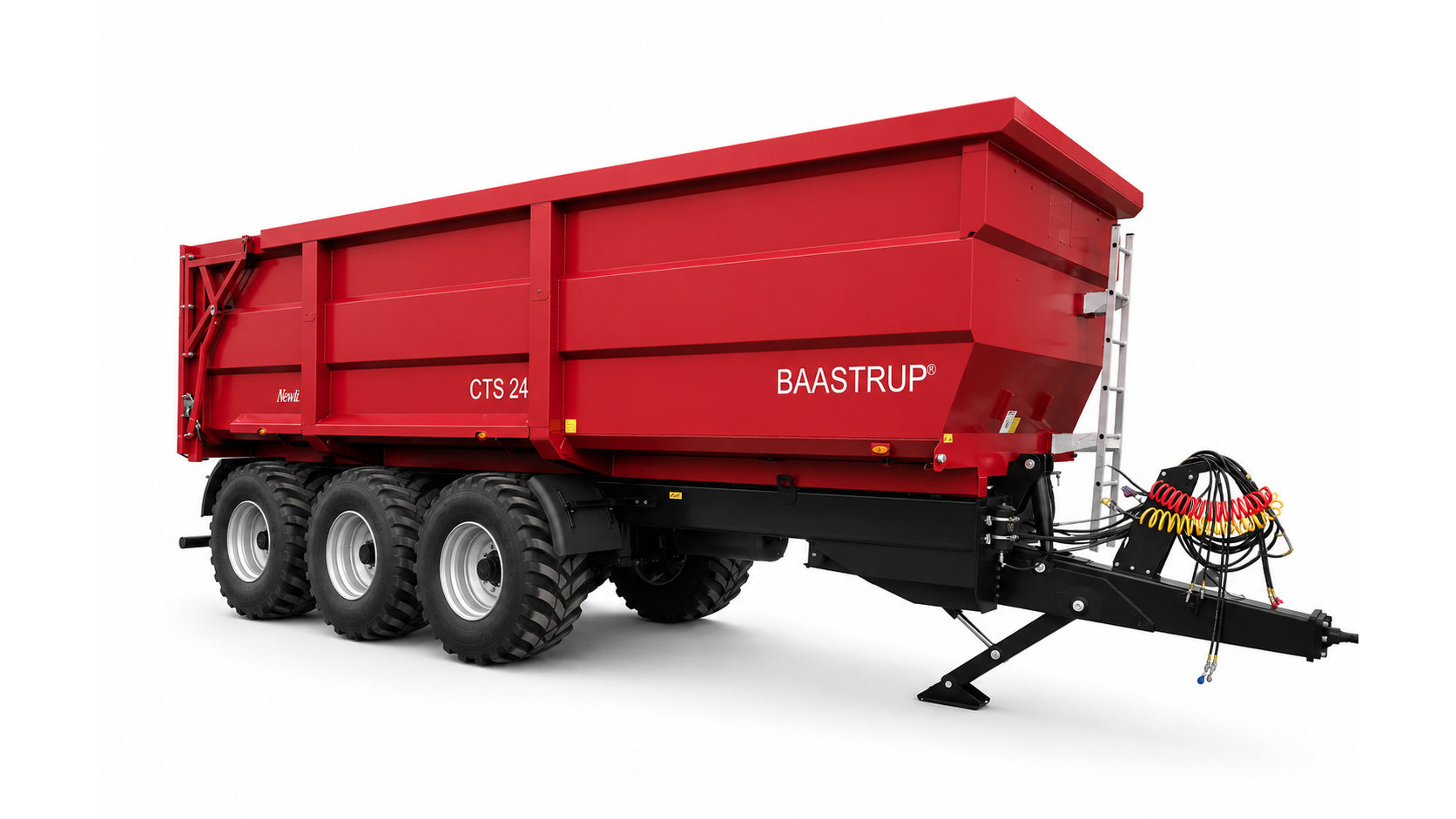

CTS 24 Tonne NewLine

Container Trailer with French tailboard, conical loading box and the possibility for grass sides

SPECIFICATIONS

CTS 24 Tonne NewLine
Load capacity (kg) 21.000 på vej – 24.000 off road
Loading space (lxwxh) m 7,75 x 2,25 x 1,7
Capacity (m³) Ca. 30
Axles/rotating/brakes 3/2/3
Hydraulic tailboard Standard
Total height standard (m) 3,17
Wheel mounting standard 620/50 R 22,5
Hydraulic support stud Standard
Capacity with grass sides m³ Ca. 44
Extra equipment, such as grass sides, 80 cm including net front board; rolling tarp; extra wheel mounting possible, 26.5” wheel Ask the machine dealer about the price

STANDARD EQUIPMENT

1. Spring-supported drawbar
2. Spring-supported triple axle
3. Hydraulic, positive steering foremost and backmost axles
4. Adjustable pull height
5. Tyre size 620/50 R 22.5
6. LED light
7. Hydraulic brakes
8. Plate thickness floor 4 mm

9. Pane in front board
10. Fertilizer spout in the tailboard
11. Mechanical lock on the tailboard
12. Ladders outside/inside
13. Measurements of the inside of the loading box 1700x7750x2250 mm
14. Total height with standard tyres without grain sides 3170 mm


The trailer is equipped with a hydraulic French tailboard that can tilt 90 cm up over the loading box so that the back end is completely free. Tip angle 48° optimizes unloading.


The tailboard is run by two double-acting cylinders that are connected to two mechanical hooks, as well as two guides at the bottom of the tailboard. The tailboard is locked mechanically and hydraulically.


The trailers for efficient transport tasks.


Spring-supported drawbar.


A statutory lighting system & bumper are mounted. Diode lights. A fertilizer spout is mounted in the tailboard. Ready for registration to licence plate.


Axles one and three have positive steering and are hydraulically lockable. Large brakes that can meet future brake requirements.


The full length of the loading box is a profile-bent. There is a 45-degree transition between the bottom and the sides. Conical loading box, 10 cm wider in the back, which ensures easy unloading. The loading box is made of a moulded plate chassis with 4 mm plate that are welded together.

EXTRA EQUIPMENT

1. Alternative tyres
2. Platform
3. Grass side kit
4. Special colour for a higher price, longer delivery time
5. Total height with standard tyres without grain sides 3970 mm
6. Net front board grass side set
7. Height of the grass sides 800 mm


Alternative tyre solutions.
